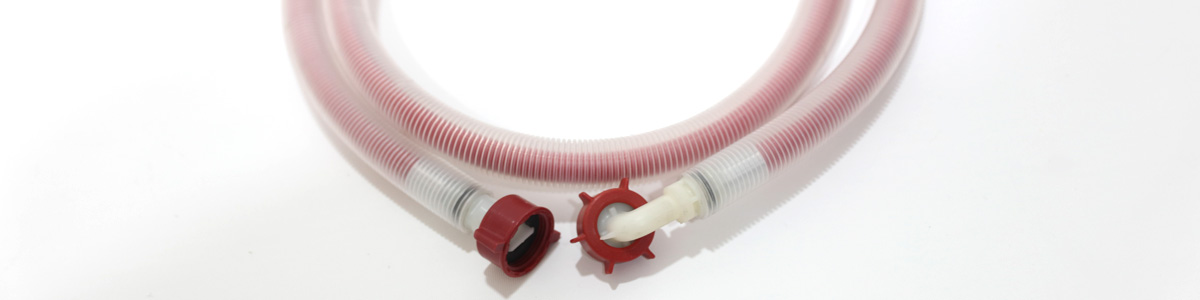

Protection Inlet Hose
Usage: It is a product which is used to prevent flooding in case of a malfunction. It consists of a water inlet hose and a protective outer hose set. When a water leak happens in the inlet hose, the water is accumulated by the protective hose so that flooding is prevented. The mechanism works without any need of an electrical power supply.
Properties:
  • %100 Full Automatic Production
  • %100 Leakage and Camera Control
  • Middle Flexible
  • High Chemical Endurance
  • Minimum Bending Radius
  • Good Resistant to Climate Impacts
  • Preassembled Components
  • Integrated Connectors
  • RoHS, REACH, SVHC Compliance
Technical Info:
Model
Material  PP, PVC, NBR, EPDM, PA 66
Water Working Temperature  5°C < t < 90°C
Ambient Operating Temperature  5°C < t < 70°C
Hose Inner & Outer Diameter  9  x 13mm / 10 x 15mm
Leak Tightness Pressure  6 bar
Flow Rate 10-16 L/min
Thread of Nut  ¾ ISO 228, ASME ¾ 11.5 NH
Burst Pressure  60 bar
