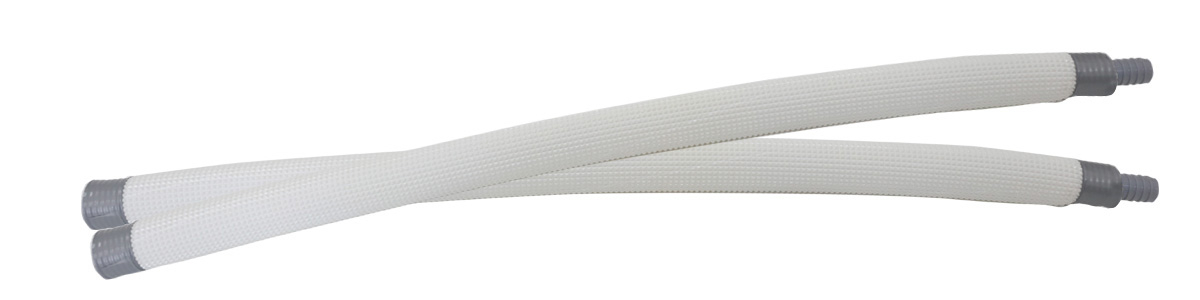

Internal Unit Hose
Usage: These hoses let the water that is formed by the concentrated damp in the air touching the cold pipe system in the internal units of machines convey into the drain hoses. The insulation is provided by a special insulating sponge. They have flex corrugated form and there are special forms on the end-points of them for easy mounting. They can be manufactured in various diameter, length and colour according to the customer’s need.
Properties:
  • %100 Leak Proofing Control
  • High Tensile Strength
  • Highly Flexible
  • High Chemical Endurance
  • Minimum Bending Radius
  • Proper Solutions for Drinking Water
  • Good Resistant to Dynamic Impacts
  • Preassembled Components
  • Integrated Connectors
  • RoHS, REACH, SVHC Compliance
  • UL Certificate
Technical Info:
Material  PP, PE, TPE
Hose Inner Diameter  14mm < Ø < 18mm
Hose Tensile Elongation Value  % 145
Isolation Sponge  PE Membrane
Ambient Operating Temperature  -25°C < t < 70°C
Temperature of Water   4°C < t < 90°C
Leak Tightness Pressure  0.5 ÷ 1 bar
Flammability Rating  V0, V1, V2, HB
Standard  DIN EN 61386-22, ISO 1307:2006,
ISO 4641:2016, ISO 4671:2007, ISO 8030:2014.
