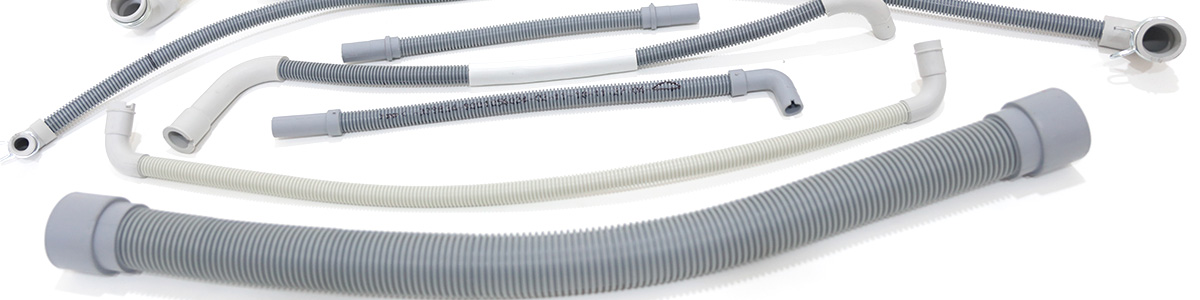

Interconnection Hose
Usage: This hose is used for various purposes such as condensation, the output of water vapor and water-feeding between machines water inlet valves and their boilers. They have flex corrugated form and there are straight or angled cuff parts and o-ring connections on the end-points of it for easy mounting. In profile hoses, multi-layer braided PVC hoses may be used. They can be manufactured in various diameter, length and colour according to the customer’s need.
Properties:
  • %100 Leak Proofing Control
  • Highly Flexible
  • High Chemical Endurance
  • Minimum Bending Radius
  • Proper Solutions for Drinking Water
  • Good Resistant to Dynamic Impacts
  • Preassembled Components
  • Integrated Connectors
  • RoHS, REACH, SVHC Compliance
  • UL Certificate
Technical Info:
Material  PP, PE, PE-Xc, TPE, TPV, PVC
Hose Inner Diameter  9mm < Ø < 30mm
Ambient Operating Temperature  -25°C < t < 70°C
Temperature of Water  4°C < t < 90°C
Leak Tightness Pressure  0.5 ÷ 1 bar
Flow Rate 13-16 L/min
Flammability Rating  V0, V1, V2, HB
Standard  DIN EN 61386-22, ISO 1307:2006,
ISO 4641:2016, ISO 4671:2007, ISO 8030:2014.
