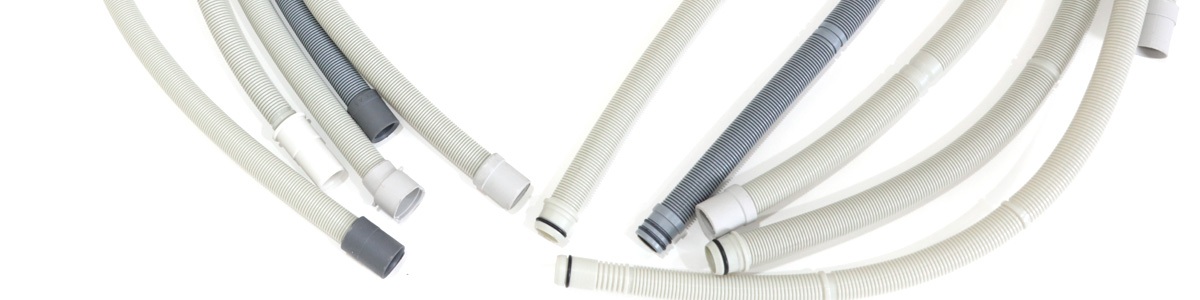

Drain Hose
Usage: They are assembled to the machine pump outlets and connected to the drain pipe and let the water in the reservoir out. They have flex corrugated form and there are straight or angled cuff parts and o-ring connections on the end-points of it for easy mounting. They can be manufactured in various diameter, length and colour according to the customer’s need. Properties:
  • %100 Leak Proofing Control
  • Highly Flexible
  • High Chemical Endurance
  • Minimum Bending Radius
  • Proper Solutions for Drinking Water
  • Good Resistant to Dynamic Impacts
  • Preassembled Components
  • Integrated Connectors
  • RoHS, REACH, SVHC Compliance
  • UL Certificate
Technical Info:
Material  PP, PE, PE-Xc, TPE, TPV
Hose Inner Diameter  9mm < Ø < 30mm
Ambient Operating Temperature  -25°C < t < 70°C
Temperature of Water   4°C < t < 90°C
Leak Tightness Pressure  0.5 ÷ 1 bar
Flow Rate 13-16 L/min
Flammability Rating  V0, V1, V2, HB
Standard  DIN EN 61386-22, ISO 1307:2006,
ISO 4641:2016, ISO 4671:2007, ISO 8030:2014.
