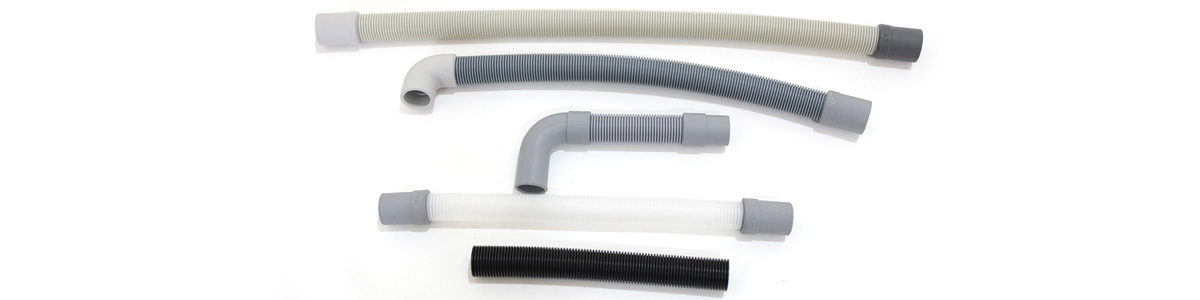

Drain Hose
Usage: These hoses are used to drain the waste water which is formed by the pressure difference in the internal units of machines. They have flex corrugated form and there are special forms on the end-points of them for easy mounting. They can be manufactured in various diameter, length and colour according to the customer’s need.length and colour.  Properties:
  • %100 Leak Proofing Control
  • Highly Flexible
  • High Chemical Endurance
  • Minimum Bending Radius
  • Proper Solutions for Drinking Water
  • Good Resistant to Dynamic Impacts
  • Preassembled Components
  • Integrated Connectors
  • RoHS, REACH, SVHC Compliance
  • UL Certificate
Technical Info:
Material  PP
Hose Inner Diameter 14mm < Ø < 18mm
Ambient Operating Temperature -25°C < t < 70°C
Temperature of Water  4°C < t < 90°C
Leak Tightness Pressure  0.5 ÷ 1 bar
Flammability Rating  V0, V1, V2, HB
Standard  DIN EN 61386-22, ISO 1307:2006,
ISO 4641:2016, ISO 4671:2007, ISO 8030:2014.
